Система защиты от DDoS атак серии AntiDDoS8000

Оборудование серии AntiDDoS8000 предназначено для операторов, компаний, центров обработки и хранения данных и поставщиков услуг ICP для защиты от атак прикладного уровня, атак IPv4~IPv6, зомби-процессов, троянский коней и червей. Оборудование данной серии полностью обеспечивает безопасность сети и непрерывность предоставления услуг.


AntiDDoS8000

Background

With the IT and network evolution, the Distributed Denial of Service (DDoS) attack has already broken away from original hacker behaviors. Instead, it forms an integral dark industry chain with overwhelming damages.


Severe DDoS attacks

At present, a single DDoS attack consumes more than 100 Gbit/s bandwidth. The number of DDoS attacks is 20 times of that in 2007, and over 30,000,000 zombie hosts flood the network. Moreover, attack tools become easily available. Large numbers of botnets break off the technical threshold for DDoS attacks. A DDoS attack is launched by only three steps, namely, downloading the attack tool, purchasing zombie hosts, and initiating the attack.


Traffic DDoS attacks evolve to application attacks

In the past, flood attacks were prevailing on the carrier network and infrastructure. In comparison, current DDoS attacks are specific to applications and services, such as enterprise portal applications, e-shopping, online videos, online games, DNS, and email. The targets of attacks become more extensive. A single attack consumes less traffic and fewer costs. The attack behavior becomes more complex and difficult to distinguish. This brings difficulty in detecting and defending against DDoS attacks.


Service interruption adversely affects enterprise operation

DDoS attacks frequently intrude into the service systems of enterprises, and severely interrupt the normal service operation. On the one hand, service interruption damages enterprises' brand images, takes away their customers, and reduces their profits, especially for small Internet enterprises on e-business, online games, and portals. On the other hand, constructing an anti-DDoS system brings intensive investment and maintenance pressure on these enterprises and deteriorates their normal service operation.


DDoS attacks cause IDC customer loss

If a service system suffers from DDoS attacks, the attack traffic occupies the entire IDC bandwidth, affecting the service systems of other leasers. As a result, IDC leasers quit, competitiveness lowers, and operation costs rise. These side impacts severely deteriorate the service operation and profits.



Solution Overview

Designed for carriers, enterprises, data centers, and ICP service providers (including providers for Web portals, online games, online videos, and DNS services) , HUAWEI Anti-DDoS solution incorporates extensive experience in network security and full understanding of customer demsands.


HUAWEI Anti-DDoS solution enhances defense against application-layer attacks, IPv4-IPv6 attack defense, and defense against zombies, Trojan horses, and worms. This fully ensures network security and service continuity.


HUAWEI Anti-DDoS solution uses the leaser-specific service design for management configuration, which implements a series of functions, including leaser service model learning, leaser configuration, and report self-service. Moreover, IDC operators can provide the Anti-DDoS solution for their leasers as an SAAS service to increase the leaser viscosity, improve IDC competitiveness, and add IDC operation profits.


Related Products

Picture Models

AntiDDoS8030 has three expansion slots

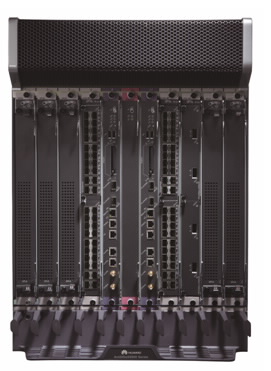

AntiDDoS8080 has eight expansion slots

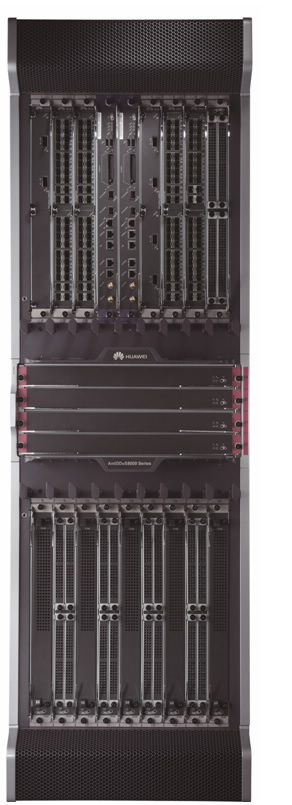

AntiDDoS8160 has 16 expansion slots

Service-Based Defense Policy

Huawei anti-DDoS solution supports continuously periodic learning and analysis on the service traffic of the Zone, draws the outline of normal service traffic, and enables differentiated defense types and policies for various services or one service in different time ranges, therefore implementing refined defense.



Accurate Abnormal Traffic Cleaning

Huawei anti-DDoS solution uses the per-packet detect technology. Defense is triggered immediately by an attack. This solution applies multiple technologies, including seven-layer filtering, behavior analysis, and session monitoring, to accurately defend against various flood attacks, Web application attacks, DNS attacks, SSL DoS/DDoS attacks, and protocol stack vulnerability attacks. In this way, application servers are protected.



Intelligently Caching DNS Traffic

Besides accurately defending against various attacks on the DNS server, Huawei anti-DDoS solution supports DNS cache for improved performance under heavy DNS server traffic.



Defense Against Prevailing Zombies/Trojan Horses/Worms

By spreading Trojan horses and worms to large numbers of hosts, hackers control the hosts hierarchically and form the botnet to launch attacks. Therefore, botnets breed DDoS attacks. Huawei anti-DDoS solution identifies and blocks over 200 common zombies/Trojan horses/worms worldwide, therefore smashing botnets.



Perfect IPv4-IPv6 Defense

In February 2011, IANA declared that IPv4 addresses were exhausted. Enterprises have no new IPv4 addresses and begin to put IPv6 network construction into agenda. The particular IPv4-IPv6 technology of Huawei anti-DDoS solution supports concurrent defense against DDoS attacks on both IPv4 and IPv6 networks. The solution addresses the DDoS attack defense requirements in dual stack and helps users transit to the next generation network.



Flexible Networking

The anti-DDoS solution must be adaptive to various network environments and address different grades of service requirements.


On this basis, Huawei anti-DDoS solution provides multiple in-line and off-line deployments, which enable customers to select flexibly by their services and networks.


In-line deployment: serially connects the detecting and cleaning modules to the network to be protected for direct traffic detecting and cleaning. The high-performance and multi-core hardware platform in use not only ensures the detecting and cleaning accuracy, but also minimizes the processing delay. Moreover, Huawei anti-DDoS solution provides the bypass module. When an anomaly occurs, traffic is sent to the cleaning module, which avoids introducing new failures.


Off-line traffic-diversion deployment: deploys the cleaning module on the network in off-line mode. Once detecting DDoS attack traffic, the detecting and cleaning centers perform actions based on the policies configured in the management center.



Highlights

High performance and rapid response: 200 Gbit/s defense performance and response within seconds

High-performance and multi-core CPU, providing Anti-DDoS products covering 2 Gbit/s to 200 Gbit/s performance to defend against all types of DDoS attack.


Self-learning of the service model and per-packet detect technology. Once a traffic or packet anomaly is found, the defense policy is automatically triggered. The defense latency is within two seconds.


Accurate and all-rounded: defense against hundreds of attacks and IPv6 defense

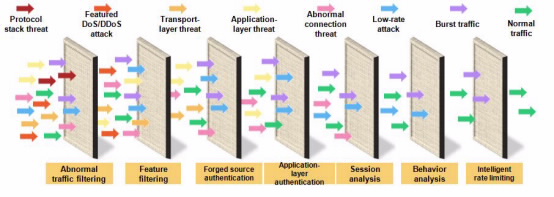

Multiple technologies, including seven-layer filtering, behavior analysis, and session monitoring, to defend against over 100 DDoS attacks, with the industry-leading defense types.


Defense against over 200 zombies, Trojan horses, and worms, protecting users from hackers.


IPv4/IPv6, as the first to support IPv6 attack defense and concurrent IPv4 and IPv6 attack defense.


Particular terminal identification technology to accurately identify client types, such as smart terminals, set-boxes, and common clients, as well as client-specific defense technologies to ensure zero false positive.


Value-added operation: protection for tens of thousands of leasers and diverse self-services

Leaser-based service design to protect 100,000 leasers concurrently.

Self-configuration of defense policies and the generation of independent security reports, providing visibility into defense effects.


Capture of attack packets, extraction of attack features, and user-defined attack feature filtering to effectively defend against DDoS attacks and zero-day attacks.


AntiDDoS8000 series
Model AntiDDoS8030 AntiDDoS8080 AntiDDoS8160
Flood defense performance 30 Mpps (15 Mpps/SPU) 75 Mpps (15 Mpps/SPU) 150 Mpps (15 Mpps/SPU)
Detecting/Cleaning performance 40 Gbit/s (20 Gbit/s per SPU) 100 Gbit/s (20 Gbit/s per SPU) 200 Gbit/s (20 Gbit/s per SPU)
Defense start latency ≤ 2 seconds ≤ 2 seconds ≤ 2 seconds
Expansion slot 3 8 16
Expansion interface card 1 × 10GE (XFP)
2 × 10GE (XFP)
1 × 10G POS (XFP)
12 × 1GE (SFP)
20 × 1GE (SFP)
Dimensions (H × W × D) 175 × 442 × 650 (DC)
220 × 442 × 650 (AC)
620 × 442× 650 (DC)
709 × 442 × 650 (AC)
1420 × 442 × 650 (DC)
1598 × 442 × 650 (AC)
Maximum power consumption 1330 W (DC)
1368 W (AC)
3038 W (DC)
3231 W (AC)
5824 W (DC)
6195 W (AC)
IPv4 defense types
Anomaly filtering Blacklist, HTTP field-based filtering, and TCP/UDP/Other protocol load feature-based filtering
Protocol vulnerability defense Defense against IP spoofing, LAND, Fraggle, Smurf, WinNuke, Ping of Death, Tear Drop, IP Option, IP fragment control packet, TCP label validity check, large ICMP control packet, ICMP redirect control packet, and ICMP unreachable control packet attacks
Transport-layer attack defense Defense against SYN flood, ACK flood, SYN-ACK flood, FIN/RST flood, TCP fragment flood, UDP flood, UDP fragment flood, and ICMP flood attacks
Scanning and sniffing attack defense Defense against port scanning, address scanning, Tracert control packet, IP Option, IP timestamp, and IP routing record attacks
DNS attack defense Defense against forged source DNS query flood attacks, real source DNS query flood attacks, DNS reply flood attacks, DNS cache poisoning attacks, DNS protocol vulnerability attacks, and fast flux botnet
Web attack defense Defense against HTTP get/post flood attacks, CC attacks, HTTP slow header/post attacks, HTTPS flood attacks, SSL DoS/DDoS attacks, TCP connection attacks, Sockstress attacks, TCP retransmission attacks, and TCP null connection attacks
VoIP attack defense Defense against SIP flood attacks
Zombie/Trojan horse/Worm attack defense Defense against over 200 zombies, Trojan horses, and worms, such as LOIC, HOIC, Slowloris, Pyloris, HttpDosTool, Slowhttptest, and Thc-ssl-dos
IPv6 defense types
IPv6 defense types Defense against ICMP fragment attacks, blacklist, HTTP field-based filtering, TCP/UDP/Other protocol load feature-based filtering, SYN flood attacks, ACK flood attacks, SYN-ACK flood attacks, FIN/RST flood attacks, TCP fragment flood attacks, UDP flood attacks, UDP fragment flood attacks, ICMP flood attacks, Forged source DNS query flood attacks, real source DNS query flood attacks, DNS reply flood attacks, DNS cache poisoning attacks, DNS protocol vulnerability attacks, fast flux botnet, HTTP get/post flood attacks, CC attacks, HTTP slow header/post flood attacks, HTTPS flood attacks, SSL DoS/DDoS attacks, TCP connection attacks, Sockstress attacks, TCP retransmission attacks, TCP null connection attacks, and SIP flood attacks
IPv4/IPv6 dual-stack attack defense Supported

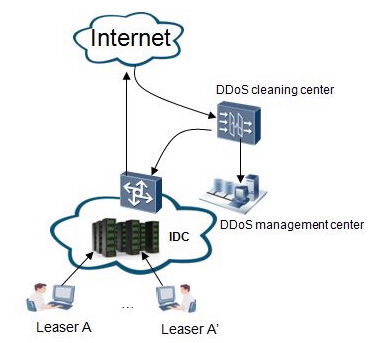

IDC Secure and Profitable Operation

HUAWEI Anti-DDoS solution deployed at the IDC egress delivers the following functions:


1. Defends against attacks on the DNS server, for example, DNS protocol stack vulnerability attacks, DNS reflection attacks, DNS flood attacks, and DNS Cache-Miss attacks, and supports DNS cache for improved DNS server performance under heavy traffic.


2. Defends against attacks on Web servers, for example, SYN flood attacks, HTTP flood attacks, CC attacks, and low-rate connection attacks.


3. Defends against attacks on online games, for example, UDP flood attacks, SYN flood attacks, and TCP attacks.


4. Defends against SSL DoS/DDoS attacks on HTTPS servers.


5. Provides customers with self-service policy configuration and report by operating Anti-DDoS as a security service.


AntiDDoS8030
AntiDDoS8030-BASE-DC AntiDDoS8030 DC Basic Configuration(include X3 DC Chassis,2*MPU),with HS General Security Platform Software Alternative
AntiDDoS8030-BASE-AC AntiDDoS8030 DC Basic Configuration(include X3 DC Chassis,2*MPU),with HS General Security Platform Software
AntiDDoS8080
AntiDDoS8080-BASE-DC AntiDDoS8080 DC Basic Configuration(include X8 DC Chassis,2*SRU,1*SFU),with HS General Security Platform Software Mandatory
CR52-PWRA-AC-DF AC Distribution Frame for Cabinet,2 or 6 Input,6(2*3) Output,6 Group of 2 Poles 20A Air Switch AC mandatory
USG9500-PWR-AC AC Power Supply Module AC mandatory
AntiDDoS8160
AntiDDoS8160-BASE-DC AntiDDoS8160 DC Basic Configuration(include X16 DC Chassis,2*MPU,4*SFU),with HS General Security Platform Software Mandatory
CR52-PWRA-AC-DF AC Distribution Frame for Cabinet,2 or 6 Input,6(2*3) Output,6 Group of 2 Poles 20A Air Switch AC mandatory
USG9500-PWR-AC AC Power Supply Module AC mandatory
SPU of the AntiDDoS 8000 series
ADS-SPUA01 Service Processing Unit, Double CPUs, with HS General Security Platform Software Optional (the SPU must be used with a license)
LIC-ADS-10GDDD00 Capability for Detector(a multiple of 10G),with HS General Security Platform Software
LIC-ADS-10GDDC00 Capability for Cleaning (a multiple of 10G),with HS General Security Platform Software
ADS-SPUA02 Service Processing Unit, Four CPUs, with HS General Security Platform Software Optional (the SPU must be used with a license)
LIC-ADS-20GDDD00 Capability for Detector(a multiple of 20G),with HS General Security Platform Software
LIC-ADS-20GDDC00 Capability for Cleaning (a multiple of 20G),with HS General Security Platform Software
LPU of the AntiDDoS 8000 series
LPUF40
FWCD0LPUF40A01 Flexible Card Line Processing Unit(LPUF-40,2 sub-slots) A, with HS General Security Platform Software Optional
FWCD00L2XX01 2-Port 10GBase LAN/WAN-XFP Flexible Card(P40) Optional
FWCD00EFGF01 20-Port 100/1000Base-X-SFP Flexible Card(P40) Optional
LPUF21
FWCD0LPUKD01 Flexible Card Line Processing Unit(LPUF-21,2 Sub-Slots) B, with HS General Security Platform Software Optional
FWCD00L1XX01 1-Port 10GBase WAN/LAN XFP Flexible Interface Daughter Card, with HS General Security Platform Software Optional
FWCD00EBGF01 12-Port 100/1000Base-X SFP Flexible Interface Daughter Card, with HS General Security Platform Software Optional
FWCD00EBGE01 12-Port 10/100/1000Base-TX RJ45 Flexible Interface Daughter Card, with HS General Security Platform Software Optional
FWCD0P1XBZ01 1 Port OC-192c/STM-64c POS-XFP Flexible Card, with HS General Security Platform Software Optional
Anti-DDoS components
ADSCT001WIN01 Windows Chinese Platform(AC PC Server, Hard Disk, Microsoft Windows Server and Patches, Chinese), Including OS License Optional
ADSCT001WIN03 Windows Chinese Platform(DC PC Server, Hard Disk, Microsoft Windows Server and Patches, Chinese), including OS License Optional
NS19MKM00 KB&Mouse, Monitor 19-Inch TFT LCD Optional
Anti-DDoS management center
LIC-ADS-NOFA00 ATIC Basic Feature Summary ,with HS General Security Platform Software Alternative
LIC-ADS-DOFA00 ATIC Operation Feature Summary ,with HS General Security Platform Software (including professional DNS defense)
Product customization and development expense
E8KE-EXTRAD01 Extra Product Function Requirement Customized Development Fee-with HS General Security Platform Software Optional
Professional Anti-DDoS defense
LIC-ADS-DNS00 DNS Professional Protection Function ,with HS General Security Platform Software Optional
LIC-ADS-WEB00 Web Professional Protection Function ,with HS General Security Platform Software Optional
LIC-ADS-DOM50 Number of DDoS Zone(a multiple of 10),with HS General Security Platform Software Optional
LIC-ADS-10GDDD00 Capability for Detector(a multiple of 10G),with HS General Security Platform Software Optional
LIC-ADS-10GDDC00 Capability for Cleanning (a multiple of 10G),with HS General Security Platform Software Optional
LIC-ADS-20GDDD00 Capability for Detector(a multiple of 20G),with HS General Security Platform Software Optional
LIC-ADS-20GDDC00 Capability for Cleaning (a multiple of 20G),with HS General Security Platform Software Optional
Subrack optical splitter
OOS314S00 Optical Splitter ,Single Mode ,Support Three Optical Links(1*4 each),1310/1550nm,+/-40nm,70:10:10:10,LC/UPC,0.25mm,SMF-28e,180.3*144.45*18.1 Optional
OOS412S00 Optical Splitter ,Single Mode ,Support Four Optical Links(1*2 each),1310/1550nm,+/-40nm,80:20,LC/UPC,0.25mm,SMF-28e,0.2dB,180.3*144.45*18.1 Optional
OOS413S00 Optical Splitter ,Single Mode ,Support Four Optical Links(1*3 each),1310/1550nm,+/-40nm,70:15:15,LC/UPC,0.25mm,SMF-28e,180.3*144.45*18.1 Optional
OOS412M00 Optical Splitter ,Multi-mode ,Support Four Optical Links(1*2 each),850nm,+/-40nm,50:50,LC/UPC,0.25mm,62.5/125ume, 250um loose tube,0.2dB,180.3*144.45*18.1 Optional
OOSSMRC00 Optical Splitter ,Single Mode /Multi-mode ,Rack-mounted Optical Splitter Chassis(Used with Optical Splitter Cards),850/1310/1550nm,482.6*209*43.6mm Optional
OOS412S01 Optical Splitter ,Single Mode , Support Four Optical Links(1*2 each),1310/1550nm,+/-40nm,50:50,LC/UPC,0.25mm,SMF-28e,0.2dB,180.3*144.45*18.1mm Optional
