S1700 Series Enterprise Switches
The S1700 series enterprise switches (S1700 for short) are next-generation energy-saving Ethernet access switches. The S1700 uses high-performance hardware, which offers a wide array of features to help customers build secure, reliable, high-performance networks. The S1700 is easy to install and maintain, and is ideal for small- and medium-size enterprises, Internet cafes, hotels, and schools.
●Fan-free design
●One-key operation
●Energy Efficient Ethernet (EEE)
Based on management types, S1700 series include unmanaged , Web-managed and SNMP-based switches.
Innovative energy saving design
All the S1700 series switches except the S1700-52GFR-4P-AC use a fan-free design that reduces power consumption and noise.
The S1700 supports Energy Efficient Ethernet (EEE) that enables the switch to enter power-saving mode when the traffic is light.
The S1700 can adjust power output for transmissions based on the cable length and set ports that are transmitting no traffic to sleep mode.
Non-blocking and high-speed forwarding
All S1700 ports provide Layer 2 wire-speed forwarding capabilities to ensure non-blocking packet forwarding. S1700 models provide optical and electrical GE uplink ports, which facilitate user access and are cost-effective.
The S1700 MAC address table supports up to 8 K of MAC addresses, making it easy to expand networks and deploy new services.
Convenient management and maintenance
The S1700 is easy to manage and maintain and comes with one-key operation button on the front panel.
Web-managed S1700 models come with a web network management system, making it easy to configure switches.
SNMP-based S1700 models allow for the use of an SNMP-based NMS for centralized configuration and management.
Powerful security performance
The S1700 provides a range of security features, including 802.1x, RADIUS, and NAC. The S1700 also supports packet filtering based on MAC addresses or ports to defend against hacker and virus attacks.
Great networking and bandwidth extensibility
The S1700 provides LACP, STP, RSTP, and MSTP functions to implement link aggregation and backup. SNMP-based switches support up to eight MSTP instances for flexible networking.
S1700 hardware specifications
| Type | Unmanaged Switch | ||||
|---|---|---|---|---|---|
| Model | S1700-8-AC | S1700-24-AC | S1700-52R -2T2P-AC |
S1700-8G-AC | S1724G-AC |
| Downlink port | Eight 10/100 Melectrical interfaces |
Twenty-four 10/100 M electrical ports |
Forty-eight 10/100 M electrical ports |
Eight 10/100/1000 M electrical ports |
Twenty-four 10/100/1000 M electrical ports |
| Uplink port | Shared with downlink ports |
Shared with downlink ports |
2 GE electrical ports 2 GE SFP optical ports |
Shared with downlink ports |
Shared with downlink ports |
| MAC address table | 8 K MAC | 8 K MAC | 8 K MAC | 8 K MAC | 8 K MAC |
| Dimensions (W*D *H) | 160*134*30 mm |
320*208*43.6 mm |
442*220*43.6 mm |
160*134*30 mm |
330*208*43.6 mm |
| Input voltage | 100 V to 240 V AC, 50/60 Hz |
100 V to 240 V AC, 50/60 Hz |
100 V to 240 V AC, 50/60 Hz |
100 V to 240 V AC, 50/60 Hz |
100 V to 240 V AC, 50/60 Hz |
| EEE | Not supported | Not supported | Not supported | Not Supported | Supported |
| Power consumption | <5W | <10W | <20W | <10W | <20W |
| Operating temperature | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C |
| Humidity | 20% to 85% (non- condensing) |
20% to 85% (non- condensing) |
20% to 85% (non- condensing) |
20% to 85% (non- condensing) |
20% to 85% (non- condensing) |
| Storage humidity | 10% to 90% (non- condensing) |
10% to 90% (non- condensing) |
10% to 90% (non- condensing) |
10% to 90% (non- condensing) |
5% to 95% (non- condensing) |
| Heat dissipation | natural heat dissipation | natural heat dissipation | natural heat dissipation | natural heat dissipation | natural heat dissipation |
| Type | Web-managed Switch | SNMP-based Switch | |||
|---|---|---|---|---|---|
| Model | S1728GWR-4P-AC | S1700-28FR -2T2P-AC |
S1700-52FR -2T2P-AC |
S1700-28 GFR-4P-AC |
S1700-52 GFR-4P-AC |
| Downlink port | Twenty-four 10/100/1000 M electrical ports |
Twenty-four 10/100 M electrical ports |
Forty-eight 10/ 100 M electrical ports |
Twenty-four 10/100/ 1000 M electrical ports |
Forty-eight 10/100/1000 M electrical ports |
| Uplink port | 4 GE SFP optical ports |
2 GE electrical ports 2 GE SFP optical ports |
2 GE electrical ports 2 GE SFP optical ports |
4 GE SFP optical ports |
4 GE SFP optical ports |
| MAC address table | 8 K MAC | 8 K MAC | 8 K MAC | 8 K MAC | 8 K MAC |
| Dimensions (W*D *H) | 442*220*43.6 mm |
442*220*43.6 mm |
442*220*43.6 mm |
442*220*43.6 mm |
442*220*43.6 mm |
| Input voltage | 100 V to 240 V AC, 50/60 Hz |
100 V to 240 V AC, 50/60 Hz |
100 V to 240 V AC, 50/60 Hz |
100 V to 240 V AC, 50/60 Hz |
100 V to 240 V AC, 50/60 Hz |
| EEE | Supported | Not supported | Not supported | Supported | Supported |
| Power consumption | <20W | <20W | <30W | <25W | <45W |
| Operating temperature | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C |
| Humidity | 20% to 85% (non- condensing) |
20% to 85% (non- condensing) |
20% to 85% (non- condensing) |
20% to 85% (non- condensing) |
20% to 85% (non- condensing) |
| Storage humidity | 5% to 95% (non- condensing) |
10% to 90% (non- condensing) |
10% to 90% (non- condensing) |
10% to 90% (non- condensing) |
10% to 90% (non- condensing) |
| Heat dissipation | natural heat dissipation |
natural heat dissipation |
natural heat dissipation |
natural heat dissipation |
fan modules for heat dissipation. |
Service Features
| Item | Web-managed Switch | SNMP-based Switch |
|---|---|---|
| Security features | Packet filtering based on MAC addresses Port-based 802.1x authentication RADIUS authentication Port isolation |
Hardware ACL Packet filtering based on MAC addresses MAC address authentication Port-based 802.1x authentication RADIUS authentication Port isolation Storm suppression Attack defense, which prevents broadcast traffic, ARP attacks, ICMP attacks, TCP attacks, worm viruses, and DoS attacks DHCP snooping |
| VLAN | 256 VLANs Access port Trunk port Hybrid port Management VLAN Voice VLAN |
4 K VLANs Access port Trunk port Hybrid port Management VLAN Voice VLAN |
| QOS | PQ and WRR Four queues on each port Queue scheduling based on 802.1p or DSCP priorities |
PQ and WRR Eight queues on each port Queue scheduling based on 802.1p or DSCP priorities |
| STP | STP(IEEE 802.1d), RSTP(IEEE 802.1w) | STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) |
| Multicast | IGMP snooping and a maximum of 256 multicast groups | IGMP snooping and a maximum of 256 multicast groups Fast leave |
| Link aggregation | 12 link aggregation groups (LAGs) and a maximum of eight ports in each LAG Static LACP |
12 link aggregation groups (LAGs) and a maximum of eight ports in each LAG Static LACP |
| Port mirroring | Port-based bidirectional flow mirroring | Port-based bidirectional flow mirroring Configuring a trunk as a mirrored interface |
| Bandwidth control | Rate limiting for incoming and outgoing packets, with the granularity of 64 kbps | Rate limiting for incoming and outgoing packets, with the granularity of 64 kbps |
| Broadcast storm suppression | Broadcast storm suppression based on the interface rate Sending alarms when the traffic rate reaches the upper limit |
Broadcast storm suppression based on the interface rate Sending alarms when the traffic rate reaches the upper limit |
| Device management | Web system network management DHCP client One-key restoration |
SNMP Web system network management (HTTPS) DHCP client User password protection One-key restoration |
| Device maintenance | System log Ping Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) |
Remote Network Monitoring (RMON) System log Ping and traceroute Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) |
| Product Description |
|---|
| S1700-8-AC Mainframe(8 FE RJ45,AC 110/220V) |
| S1700-24-AC Mainframe(24 FE RJ45,AC 110/220V) |
| S1700-52R-2T2P-AC Mainframe(48 FE RJ45,2 GE RJ45,2 GE SFP ,AC 110/220V) |
| S1700-8G-AC Mainframe(8 GE RJ45,AC110/220V) |
| S1724G-AC Mainframe(24 GE RJ45,AC 110/220V) |
| S1728GWR-4P-AC Mainframe(24 GE RJ45,4 GE SFP,AC 110/220V) |
| S1700-28FR-2T2P-AC Mainframe(24 FE RJ45,2 GE RJ45,2 GE SFP,AC 110/220V) |
| S1700-52FR-2T2P-AC Mainframe(48 FE RJ45,2 GE RJ45,2 GE SFP,AC 110/220V) |
| S1700-28GFR-4P-AC Mainframe(24 GE RJ45,4 GE SFP,AC 110/220V) |
| S1700-52GFR-4P-AC Mainframe(48 GE RJ45,4 GE SFP,AC 110/220V) |

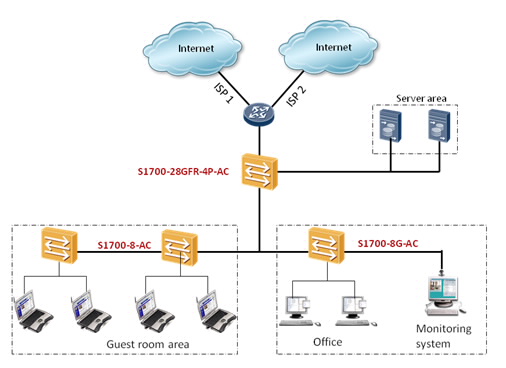

Hotels

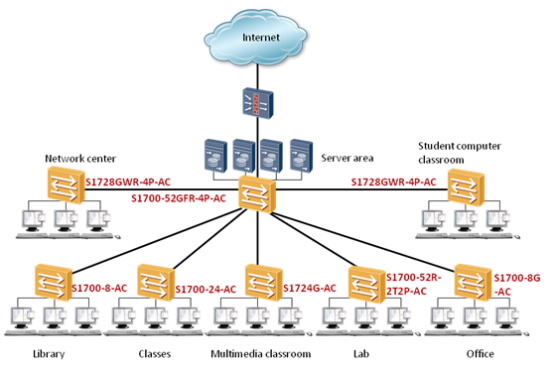

Schools
