CPE eA660

El eA660 de Huawei es un Equipo Terminal de Usuario (CPE) de Evolución a Largo Plazo (LTE). Como gateway inalámbrico, el eA660 se puede implementar en exteriores para brindar servicios, por ejemplo, la recopilación de datos y la videovigilancia.

eA660-Series

  • eA660-Series

  • The eA660 is developed based on the Software Development Platform (SDP). It supports LTE and quick customization.
  • Compatible with 1.8 GHz , 2.3 GHz, 3.7G and 5.0G LTE Time-Division Duplex (TDD) networks; supports customization of different frequency bands
  • High-speed data services
  • Dynamic Host Configuration Protocol (DHCP) and Network Address Translation (NAT) that provide high-speed routing service
  • Firewall functions
  • Web-based configuration utility that has an intuitive user interface
  • Device management that supports TR-069
  • Intuitive LED indicators, for easy identification of the device status
  • Built-in high-gain antennas that improve product performance and make the device easy to carry; also compatible with external antennas
  • Surge protection
  • Anti-shock capabilities that meet the IEC61373 (railway) and MIL-STD-810F (USA military) standards
  • Shell protection that meets the IP67 standard

Hardware

Technical specifications of eA660

Category Description
Technical standards WAN: LTE R8
LAN: IEEE 802.3/802.3u
External ports 10/100 Mbit/s Ethernet port (RJ-45) x 1
Antenna port (N female) x 2
SIM card slot x 1
Maximum transmit power LTE: 23 dBm (±2)
Power consumption < 21 W
Power supply Power over Ethernet (PoE) power supply
Dimensions (H x W x D) 280 mm x 250 mm x 80 mm
Waterproof and dustproof grade IP67
Weight ≤ 2000 g (without power adapter)
Working temperature -40°C to 65°C
Storage temperature -40°C to 70°C
Relative humidity 5% RH to 95% RH
Installation method Mounted on utility poles or walls



Antenna

Item eA660-118 eA660-123 eA660–137 eA660–150
Band 1785 MHz to 1805 MHz 2300 MHz to 2400 MHz LTE Band 40 3600 MHz to 3800 MHz LTE Band 43 4900 MHz to 5900 MHz
Input impedance 50 ohm 50 ohm 50 ohm 50 ohm
SWR < 2 < 2 < 2 < 2
Gain 11 dBi 13 dBi 16 dBi 17 (±1) dBi
Polarization Dual polarization Dual polarization Dual polarization Dual polarization
Radiation pattern Directional antenna Directional antenna Directional antenna Directional antenna



Software

Item Description
Gateway Supports Address Resolution Protocol (ARP)
Supports domain name service (DNS)
Supports Internet Control Message Protocol (ICMP)
NAT
Supports Network Address Translation (NAT) and Network Address Port Translation (NAPT). (Compatible with RFC2663/RFC3022/RFC3027)
Supports fragment message identification for normal NAT
Supports NAT traverse of File Transfer Protocol (FTP), Windows Messenger (MSN), and NetMeeting
DHCP server
IP address status such as the hostname, Media Access Control (MAC) address, IP address, and remaining DHCP lease can be displayed.
Supports static IP address reservation
Firewall Firewall switch
LAN MAC address filtering
IP address filtering
URL filtering
Security Parameter Index (SPI) filtering
Demilitarized Zone (DMZ)
Port forwarding
Service access control
LAN Auto-negotiation between 10 Mbit/s and 100 Mbit/s
MDI/MDIX auto-sensing
Compatible with IEEE 802.3/802.3u
WLAN Supports Service Set Identifier (SSID) broadcasting and hiding.
Authentication:
Open system authentication
Shared key authentication
Encryption using WEP (64 or128 digits)
Encryption using WPA-PSK/WPA2-PSK (256 digits)
TKIP encryption algorithm
AES encryption algorithm
TKIP and AEC encryption algorithm synchronously
MAC address authentication:
Up to 16 MAC addresses
Ratio adjustment:
Auto
Manual (except for 802.11n)
STA management:
Limits the number of users (up to 32 users)



Packing List

eA660's packing list

No. Item Quantity
eA660 1 Standard
Power adapter 1 Optional
User guide 1 Standard
Ground cable 1 Optional
Ethernet cable 2 Optional
Installation accessory package 1 Optional

The eA660 is deployed outdoors and provides wireless gateway services. The eA660 can be deployed independently or used in conjunction with the eA100, which is deployed indoors and connected to eA660 using a network cable, providing Wi-Fi and other Internet services.


The eA660 deployed with the eA100


The eA660 provides a variety of data services, such as LTE-TDD wireless routing and converting LTE wireless data into wired Ethernet data, and vice versa.


The eA660 deployed in industrial private networks


The eA660 connected to a video camera.

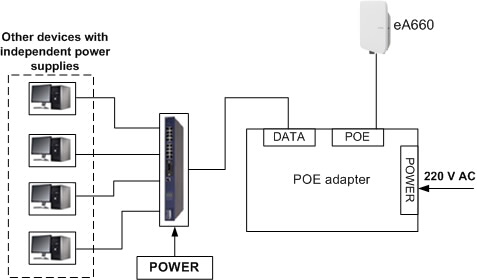

The eA660 connected to multiple devices
