Dipole Antenna

El panel de banda ancha para la transmisión de series de TV IV/VA (UHF) ha sido diseñado como un bloque de creación para la integración en arrays de antenas complejas. Ha sido diseñado específicamente para estructuras operativas de 4 caras.


Specially designed, highly targeted.

The product is specially designed for DTV system, highly targeted and ssuperior performance.



Robust casing, long service life

Corrosion resistant aluminium construction with fibreglass radome, the antenna can work stably with a long service life.



Providing horizontal and vertical polarization product

We provide horizontal and vertical polarization antenna, can meet your diverse needs.



Low wind loading, highly stability

The products adopt the low wind loading design and Cyclone Rated, can work safely.



Wide frequency coverage, high power input and high cost effective

The products support the bandwidth from 470MHz to 806MHz, and support high power output, with high cost effective.


Model Vertical Type Horizontal Type
Frequency Range, MHz 470 - 860
Polarization Vertical Horizontal
Number of Channels Multichannel
Nominal Gain (Mid-band), dBd 11 - 13
Half Power Beamwidth Azimuth, degrees 60
Return Loss, dB 25
Input Connector 7-16 DIN; 7/8" EIA Flange
Power Rating, kW 2.5
Impedance, Ohms 50 unbalanced
Weight, kg (lb) 12 (26) 11.5 (26)
Mounting (Standard), mm (in) 4 x 12mm (1/2) bolts 4 x 10mm (3/8) bolts
Effective Area Front (full antenna), sq m (sq ft) 0.45 (4.84) 0.55 (5.9)
Effective Area Side (full antenna), sq m (sq ft) 0.35 (3.76) 0.4 (4.28)
Design Wind Speed ( max), km/h (mph) 240 (150)
Colour White radome standard, other upon request
Pressurization - Operational, kPa (psi) 20 - 35 (3 - 5) 7/8" EIA Version
Pressurization - Test, kPa (psi) 100 (15) 7/8" EIA Version
Material - Radome Fibreglass
Material - Insulators PTFE
Material - Radiators Corrosion resistant aluminium (optional Stainless Steel)
Material - Reflecting Screen Corrosion resistant aluminium

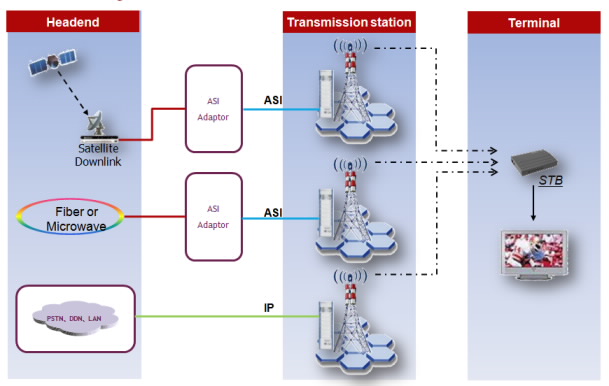

The network application of IV/VA (UHF) TV Panel Arrays
