The AP7110 series includes AP7110DN-AGN and AP7110SN-GN.

AP7110DN-AGN:

Appearance

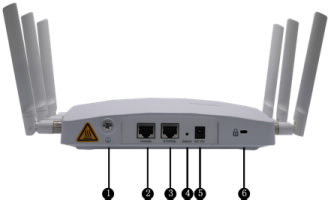

Ports

1.Ground point: connects to a ground cable.

2.Console interface.

3.ETH/PoE interface: a 10/100/1000M interface, which connects to the wired Ethernet and supports the PoE power supply.

4.Default button: restores factory settings if you hold down the button more than 3s.

5.Power input interface: 12 V DC.

6.Lock interface: protects the AP against theft.

LED Indicators

AP7110SN-GN:

Appearance

Ports

1.Ground point: connects to a ground cable.

2.Console interface.

3.ETH/PoE interface: a 10/100/1000M interface, which connects to the wired Ethernet and supports the PoE power supply.

4.Default button: restores factory settings if you hold down the button more than 3s.

5.Power input interface: 12 V DC.

6.Lock interface: protects the AP against theft.

LED Indicators

Highly reliable wireless access

• AP7110DN-AGN: complies with IEEE 802.11a/b/g/n.
• AP7110SN-GN: complies with IEEE 802.11b/g/n.
• Supports 3 x 3 MIMO and provides a maximum rate of 900 Mbit/s.
• Supports Wi-Fi Multimedia (WMM) and priority mapping on the air interface and wired interface.
• Supports wired link integrity check.
• Supports load balancing.
• Supports roaming without service interruption in Fit AP mode.
• Supports AC dual-link backup and VRRP hot backup in Fit AP mode.
• Supports 11n beamforming.
• Uses the latest 802.11n chip to provide higher performance and wider coverage.
• Uses a metal shell and heat dissipation design to ensure high reliability.

Comprehensive user access control capability

• Supports access control lists (ACLs) and implements user access control based on the user group policy.
• Provides fine-grained bandwidth management for each user.
• Supports user isolation policies.
• Supports unified authentication on the AC in Fit AP mode.
• Identifies the device type according to the organizationally unique identifier (OUI) in the MAC address, user agent (UA) information in an HTTP packet, and DHCP options in Fit AP mode.
• The RADIUS server delivers packet forwarding, security, and QoS policies according to the device type carried in the RADIUS authentication and accounting packets in Fit AP mode.

High security

• Open system authentication
• WEP authentication/encryption
• WPA/WPA2-PSK authentication and encryption
• WPA/WPA2-802.1x authentication and encryption
• WAPI authentication and encryption
• Supports wireless intrusion detection system (WIDS), including rogue AP and STA detection, attack detection, STA/AP blacklist and whitelist.

Flexible networking and environment adaptability

• Provides flexible networking capabilities and applies to various application scenarios. Mesh and WDS scenarios are supported only in Fit AP mode.
• Has strong environment adaptability. The AP can automatically select the transmission rates, channels, and transmit power to adapt to various radio environments and avoid interference in real time.
• Adjusts bandwidth allocation based on the user quantity and environment to improve user experience.
• AP7110DN-AGN: supports the MIMO antenna system and connects to external dual-band antennas (2.4 GHz and 5 GHz). The antennas can be flexibly adjusted.
• Identifies interference sources such as bluetooth devices, microwave ovens, cordless phones, ZigBees, game controllers, 2.4 GHz/5 GHz wireless video and audio devices, and baby monitors in Fit AP mode and works with eSight to locate interference sources and display spectrums.

Simple device management and maintenance

• Automatically goes online and loads the configuration, and supports plug-and-play (PnP) in Fit AP mode.
• Supports batch upgrade.
• Allows real-time monitoring on the network management system (NMS) to facilitate remote configuration and fast fault location.
• Supports the Link Layer Discovery Protocol (LLDP) to implement automatic link discovery and obtain the network topology.

WLAN features

• AP7110DN-AGN: complies with IEEE 802.11a/b/g/n.
• AP7110SN-GN: complies with IEEE 802.11b/g/n.
• AP7110SN-GN: maximum rate of 450 Mbit/s
• AP7110DN-AGN: maximum rate of 900 Mbit/s
• Maximum ratio combining (MRC)
• Maximum-likelihood detection (MLD)
• Data unit aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx only)
• AP7110DN-AGN: supports 802.11 dynamic frequency selection (DFS).
• Short GI in 20 MHz and 40 MHz modes
• Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwarding
• Automatic and manual rate adjustment (the rate is adjusted automatically by default)
• WLAN channel management and channel rate adjustment
• Automatic channel scanning and interference avoidance
• Service set identifier (SSID) hiding
• Signal sustain technology (SST)
• Unscheduled automatic power save delivery (U-APSD)
• Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP mode
• Automatic login in Fit AP mode
• Wireless distribution system (WDS) in Fit AP mode
• Mesh networking in Fit AP mode

Network features

• Compliance with IEEE 802.3u
• Auto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)
• SSID-based VLAN assignment
• VLAN trunk on uplink Ethernet ports
• 4094 VLAN IDs (1-4094) and a maximum of 16 virtual APs (VAPs) for each radio
• AP control channel in tagged and untagged mode
• DHCP client, obtaining IP addresses through DHCP
• Tunnel data forwarding and direct data forwarding
• STA isolation in the same VLAN
• Access control lists (ACLs)
• Link Layer Discovery Protocol (LLDP)
• Uninterrupted service forwarding upon CAPWAP channel disconnection in Fit AP mode
• Unified authentication on the AC in Fit AP mode
• AC dual-link backup and VRRP hot backup in Fit AP mode
• Native IPv6
• IPv4/IPv6 dual stack
• IPv6 Portal
• IPv6 SAVI
• IPv4/IPv6 ACL

QoS features

• Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwarding
• WMM parameter management for each radio
• WMM power saving
• Priority mapping for upstream packets and flow-based mapping for downstream packets
• Queue mapping and scheduling
• User-based bandwidth limiting
• Adaptive bandwidth management (the system dynamically adjusts bandwidth based on the number of users and radio environment to improve user experience)

Security features

• Open system authentication
• WEP authentication/encryption
• WPA/WPA2-PSK authentication and encryption
• WPA/WPA2-802.1x authentication and encryption
• WAPI authentication and encryption
• Supports wireless intrusion detection system (WIDS), including rogue AP and STA detection, attack detection, STA/AP blacklist and whitelist.
• DHCP Snooping
• DAI（Dynamic ARP Inspection）
• IPSG（IP Source Guard）

Maintenance features

• Unified management and maintenance on the AC in Fit AP mode
• Automatic login and configuration loading, and plug-and-play (PnP) in Fit AP mode
• WDS zero-configuration deployment in Fit AP mode
• Mesh network zero-configuration deployment in Fit AP mode
• Batch upgrade
• Local AP management through the serial interface or using Telnet
• Real-time configuration monitoring and fast fault location using the NMS
• System status alarm
• Dying Gasp

BYOD

• Identifies the device type according to the organizationally unique identifier (OUI) in the MAC address.
• Identifies the device type according to the user agent (UA) information in an HTTP packet.
• Identifies the device type according to DHCP options.
• The RADIUS server delivers packet forwarding, security, and QoS policies according to the device type carried in the RADIUS authentication and accounting packets.

Locating Service

• Locates tags manufactured by AeroScout or Ekahau.
• Locates Wi-Fi terminals.

Spectrum Analysis

• Identifies interference sources such as bluetooth devices, microwave ovens, cordless phones, ZigBees, game controllers, 2.4 GHz/5 GHz wireless video and audio devices, and baby monitors.
• Works with eSight to locate and perform spectrum analysis on interference sources.

Specifications

Radio Specifications

The AP7110DN-AGN and AP7110SN-GN provide high-performance wireless services for large and medium enterprises in high-density scenarios. The AP7110DN-AGN can be flexibly deployed and work in both fit AP and bridge mode.

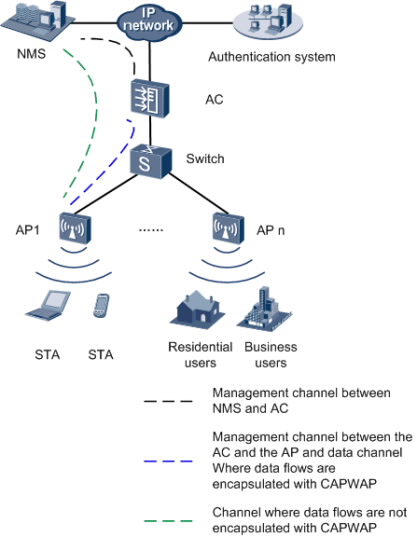

Fit AP networking (AP mode):

In this networking, the AP functions as a fit AP and provides only data forwarding functions. The AC is responsible for user access, AP go-online, AP management, authentication, routing, security, and QoS.

Fit AP networking (WDS mode: point-to-point):

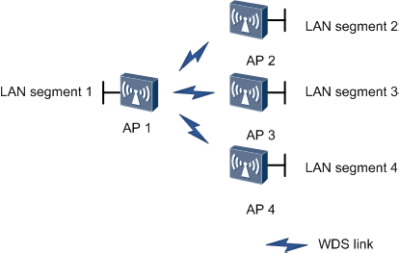

Fit AP networking (WDS mode: point-to-multipoint):

In this networking, the AP connects two or more independently wired or wireless LANs through wireless links to construct a network on which users can exchange data. In Wireless Distribution System (WDS) mode, the AP supports point-to-point (P2P) and point-to-multipoint (P2MP) networking modes. With 5 GHz and 2.4 GHz frequency bands, the AP can implement wireless bridging and access functions.

Fit AP mesh networking:

On the preceding network, APs function as mesh points (MPs) and are fully-meshed to establish an auto-configured and self-healing wireless mesh network (WMN). APs with the gateway function can work as the mesh portal points (MPPs) through which the WMN can provide access to the Internet. Terminals connect to APs to access the WMN. The WMN uses dedicated mesh routing protocols to guarantee high transmission quality and is more applicable to scenarios that require high bandwidth and highly stable Internet connections.
