eA100
Huawei eA100 is a Long Term Evolution (LTE) customer premises equipment. As a wireless gateway, the eA100 can be deployed indoors and used with eA660. The eA100 provides wireless access, VoIP, and other Internet services.
- The eA100 supports LTE Release 8, working over a wireless or wired connection. The eA100 provides the following functions:
- Data services
- Voice over IP
- Security services
- Local maintenance and management
- Data routing
Hardware
Technical specifications of eA100
| Category
|
Description
|
| Technical standards
|
LAN: IEEE 802.3/802.3u
WLAN: IEEE 802.11b/g/n
|
| External ports
|
10/100 Mbit/s Ethernet port (RJ-45) x 4
POST (RJ-11) x 1
Power port x 1
Reset hole
|
| Maximum transmit power
|
WLAN:
802.11n: 11 dBm (±2)
802.11g: 13 dBm (±2)
802.11b: 15 dBm (±2)
|
| Power consumption
|
< 21 W
|
| Power supply
|
12 V DC
|
| Dimensions (H x W x D)
|
230 mm x 160 mm x 40 mm
|
| Weight
|
< 500 g (without power adapter)
|
| Working temperature
|
-5°C to 45°C
|
| Storage temperature
|
-40°C to 70°C
|
| Installation method
|
Placed horizontally or mounted on walls
|
Antenna
| Item
|
Description
|
| Band
|
2.4 GHz to 2.483 GHz
|
| Input impedance
|
50 ohm
|
| SWR
|
< 2.5
|
| Efficiency
|
50%
|
| Power capacity
|
4 W
|
| Polarization
|
Dual polarization
|
Software
| Item
|
Description
|
| Gateway
|
Supports Address Resolution Protocol (ARP)
|
| Supports domain name service (DNS)
|
| Supports Internet Control Message Protocol (ICMP)
|
NAT
Supports Network Address Translation (NAT) and Network Address Port Translation (NAPT). (Compatible with RFC2663/RFC3022/RFC3027)
Supports fragment message identification for normal NAT
Supports NAT traverse of File Transfer Protocol (FTP), Windows Messenger (MSN), and NetMeeting
|
DHCP server
IP address status such as the hostname, Media Access Control (MAC) address, IP address, and remaining DHCP lease can be displayed.
Supports static IP address reservation
|
| Firewall
|
Firewall switch
LAN MAC address filtering
IP address filtering
URL filtering
Security Parameter Index (SPI) filtering
Demilitarized Zone (DMZ)
Port forwarding
Service access control
|
| LAN
|
Auto-negotiation between 10 Mbit/s and 100 Mbit/s
MDI/MDIX auto-sensing
Compatible with IEEE 802.3/802.3u
|
| WLAN
|
Supports Service Set Identifier (SSID) broadcasting and hiding.
Authentication:
Open system authentication
Shared key authentication
Encryption using WEP (64 or128 digits)
Encryption using WPA-PSK/WPA2-PSK (256 digits)
TKIP encryption algorithm
AES encryption algorithm
TKIP and AEC encryption algorithm synchronously
MAC address authentication:
Up to 16 MAC addresses
Ratio adjustment:
Auto
Manual (except for 802.11n)
STA management:
Limits the number of users (up to 32 users)
|
Packing List
eA100's packing list
| No.
|
Item
|
Quantity
|
| eA100
|
1
|
Standard
|
| Power adapter
|
1
|
Optional
|
| User guide
|
1
|
Standard
|
| 1.5M Ethernet cable
|
2
|
Optional
|
| 17cm USB cable
|
1
|
Optional
|

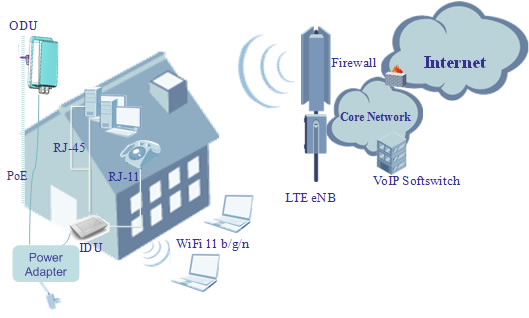

The eA100 is deployed indoors and must be used with the eA660. The eA100 obtains signals from the eA660 using a network cable to provide VoIP, wireless access, and other Internet services.
